The most popular of welded mesh fence is dark green. Normally we use RAL number to name the color.
Other colors available.
V Bend Mesh Panel
Product List
Showing all 5 results
V Bend Mesh Panel Video Show
Step into the world of precision and durability with our exclusive look at how every V Bend Mesh Panel is crafted to perfection. From high-quality raw materials to meticulous manufacturing processes, this video takes you behind the scenes of our cutting-edge production facility.
Our V Bend Mesh Panels are available in a variety of sizes, wire gauges, and materials to meet your exact needs. Whether you require custom dimensions, specific finishes, or unique perforation patterns, we deliver tailored solutions with unmatched precision. Backed by internationally recognized certifications, including ISO 9001, our products guarantee reliability and compliance with global industry standards.
Click below to watch the video and see why professionals worldwide trust our V Bend Mesh Panels. Contact us today for a free quote or sample—let’s build something stronger together!

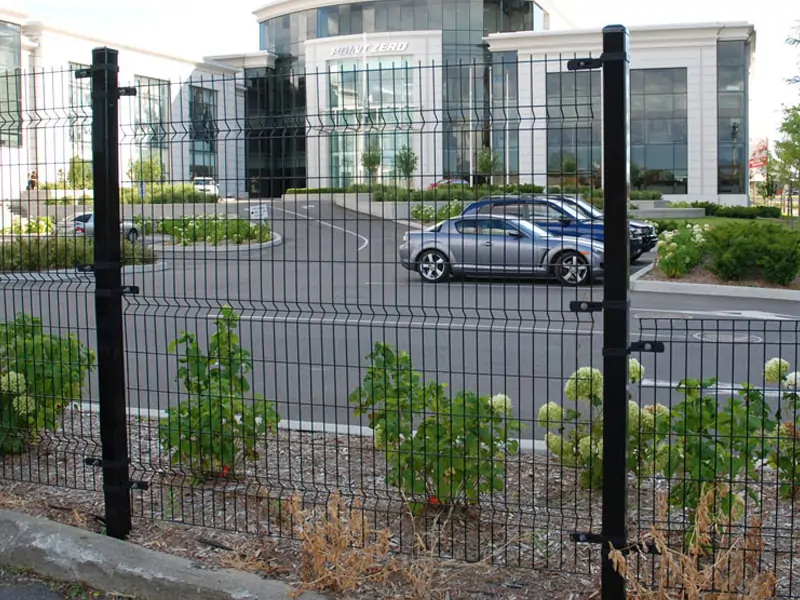

Applications
Machine Guarding: Protects equipment while allowing visibility and airflow.
Walkways & Platforms: Slip-resistant mesh for safe access in factories and plants.
Facade Cladding: Modern, ventilated designs for buildings and sunscreens.
Partitions & Balustrades: Combines safety with aesthetic appeal.
Perimeter Fencing: Anti-cut, tamper-proof barriers for high-risk areas.
Animal Enclosures: Heavy-duty mesh for zoos, farms, and aviaries.
Ask Us about Our Products
At YESON, we offer all types of fences! Request a free quote from us today!
Galvanized Wire V Bend Mesh Panel
V bend mesh panel is designed with a series of architectural “V” folds that reinforce the overall strength of the system. The wire mesh panels are fabricated in a pattern of horizontal and vertical wires welded at each intersection forming a rigid panel section.
It’s highly favorable as it offers an aesthetic look to the premises and further beautifies the property. It is a visually appealing fence suitable for boundary, anti-intruder uses and keeps out unwanted visitors. The system is very easy and fast to install and integrates directly with a range of robust gates for a complete security solution. Installing a V-Bend fence, whether you own business property or simply wish to demarcate your home property, is one of the most promising ways to do so.
The curved shape can be top and bottom circle, 2 V shaped curved, 3 V shaped curved, 4 V shaped curved, top and bottom triangle, top and bottom L shaped curved, diamond-shaped, semicircular shaped.
V Bend Mesh Panel Structure and Working Principle
Popular Color of V-bend Wire Mesh Fence
Mesh Fence Panel Size and V-bend Number
The length of the fence panel normally is 2500mm. The height of the fence panels are different according to different usage. Anyway, the panel size and V-bend number can be customized as customers request.
Mesh Opening
Popular mesh opening of fence panel is 50mm x 200mm. Also, some customers request 55mmx200mm. The height of the bend should be 100mm. There will be 30mm ends of wire on the fence panel top.
Material Grade and Finish
The raw material of wire mesh panel is Q195 /Q235 low carbon steel. The surface coating is galvanizing + powder coating. The galvanized coating can be electro gal. and hot dipped gal. The finish coating can be powder spray or PVC coated.
Custom Your V Mesh Security Fencing
Based on your project and market, you can OEM manufacturing the V mesh security fence on every details. Feel free to consulting with our mesh fence specialists through online meeting or factory visit.
| Hot-dip galvanized / PVC Coated Welded mesh garden fence | ||
| Fence Panel | Material | Low carbon steel wire |
| Wire diameter | 3.0mm ~ 6.0mm; | |
| Opening(mm) | 50X100,50X120,50X150,50X200,75X150,75X200 | |
| Height | 0.8 ~ 2.0m; less than 4.0m is available | |
| Width | 2m ~ 3.0m | |
| Panel Type | With or without curves are both available as request. | |

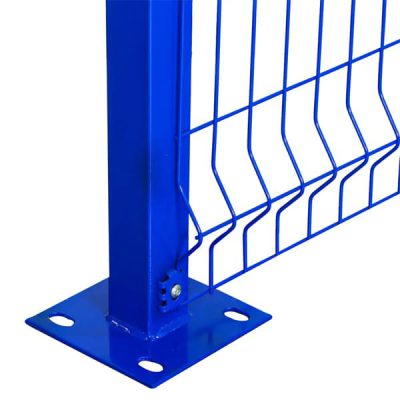

| Fence Post | Square post | 50mmx50mm, 60mmx60mm, 40mmx60mm, |
| Round Post | 48mm, 60mm | |
| Peach Post | 50mmx70mm, 70mmx100mm | |
| Post thickness | 1.2 mm to 2.5mm | |
| Post Height | 0.8m ~ 3.5m | |
| Post Base | With or without the base flange are both available. | |
| Post Fittings | Post clips with Bolts and nuts, post rain cap, | |
| Fence Finishing | 1. Hot-dip Galvanized | |
| 2. PVC powder spraying coated or PVC powder dipping coated | ||
| 3. Galvanized +PVC powder spraying/dipping coated | ||
| Packing | 1) With pallet; 2)Bulk in container. | |
| The customization is also available. | ||
Choose most suitable parts
Estimated Costs for V Mesh Security Fencing
The price-driving of wholesale V mesh fence are the fence wire, hole size, wholesale quantity and shipping. For a formal and accurate offer price, you can contact our specialists for any help.
Fence Wire
Different wire materials and surface treatment such as hot-dip galvanized and colored pvc coating.
Hole Size
Mesh size and wire diameter are also an important factor of fence cosr, a suitable size can save cost.
Wholesale Quantity
Save more and generate higher profitability with 100 sets MOQ and more wholesale quantity.
Shipping Cost
Another wholesale cost is the shipping freight from China to your market. You can also rely on our logistics support.
