Black Silk Cloth Filter Mesh China Manufacturer

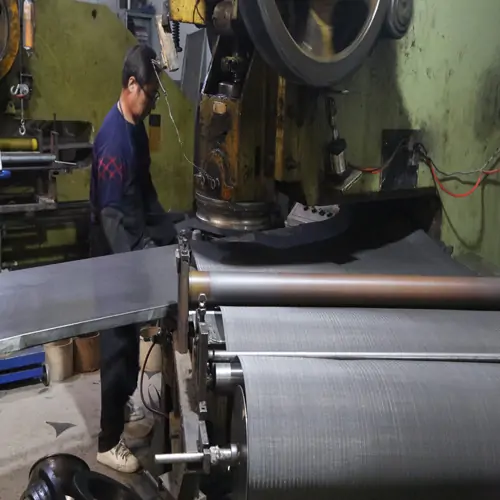

YESON has been providing top-notch black silk cloth fabrication services for 30+ years. From design, prototyping, and black silk cloth folding to weaving, we are capable of doing everything.
Your Whole Solution of Filter Black Silk Cloth
Filter Black Silk Cloth is made of low carbon steel wire without any surface treatment. It is also called black wire cloth, iron cloth. The black wire is woven through plain weave, twill weave and dutch weave. Black woven wire mesh is commonly supplied in rolls, we can also cut to pieces in round, rectangular, square, oval and other shapes as your requirements.
Black woven wire mesh has equal meshes and smooth surface, it can be used for different applications, such as filtering gas and liquid in the plastic recycling, rubber industry, oil industry and other fields.
All Filter Black Silk Cloth Solutions
Product Category
- Wire Mesh Series (32)
- Farm Fence (7)
- Welded Wire Mesh (9)
- Hexagonal Wire Mesh (3)
- Crimped Wire Mesh (2)
- Decorative Mesh (10)
- Stainless Steel Mesh (1)
- Fence Products (30)
- Chain Link Fence (4)
- Garden Fence (9)
- Security Fence (7)
- Silt Fence (1)
- Temporary Fence (5)
- Wrought Iron Fence (7)
- Hardware Accessory (21)
- Wire Series (3)
- Bird Spike (1)
- Fence Post (6)
- Nail Series (4)
- Other Accessory (7)
- Filter Series (7)
- Barbed Wire (7)
- Gabion Barriers (6)
- Mesh Sheet (5)
- Metal Cages (8)
- Expanded Metal Mesh (3)
- Perforated Metal Mesh (5)
- Plastic Mesh and Shade Net (3)
- Pest Control (1)
- Steel Grate (2)
- Window Screen (6)
Showing 1–9 of 13 results
Why Yeson Your Prime Choice for Filter Black Silk Cloth?
Custom service: 1. Mail us your target specifications to see the possibility; 2. Design according to your sent raw water sample.
Quality: Free samples are always available for your quality inspection; For each order, we will perform a bubble point test to ensure a good and stable filtration performance.
After-sales support: Yeson sales manager and engineer team with over 20 years of experience are at your service on 7/24.
Features:
1. Even meshes.
2. Smooth surface.
3. Outstanding filtering performance.
4. Widely applications.
5. Long service life.
6. Low cost.
Size Table: (Plain Weave, Twill Weave)
Mesh / inch | Wire Dia.mm | Aperture mm |
2 | 1.80 | 10.90 |
3 | 1.60 | 6.866 |
4 | 1.20 | 5.15 |
5 | 0.91 | 4.17 |
6 | 0.80 | 3.433 |
8 | 0.60 | 2.575 |
10 | 0.55 | 1.99 |
14 | 0.5 | 1.314 |
18 | 0.45 | 0.961 |
20 | 0.40 | 0.87 |
30 | 0.305 | 0.542 |
50 | 0.20 | 0.308 |
60 | 0.19 | 0.223 |
80 | 0.12 | 0.198 |
Size Table: (Plain Weave Pattern)
Plain Weave Mesh | ||||
Filter Mesh Number | Mesh Count (Warp x Weft) | Wire Diameter (Warp x Weft) | Aperture Size | Weight per Square Meter |
40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.40 |
Material: Black wire, typically made of low carbon steel Q195, special medium carbon steel, or high carbon steel.
Weaving Patterns: Plain weave, twill weave, herringbone, mesh, embossed, etc.
Mesh Count: From 0.5 mesh to 80 mesh (plain/twill weave) to 200 mesh (mesh).
Wire Diameter: From 5mm to 0.13mm.
Width: Regular widths include 1 meter, 1.13 meters, 1.22 meters. Special widths range from 1.5 meters to 2.6 meters.
Length: The regular length is 30 meters, customizable according to requirements.
Applications: Protection, sieving, and filtration.
Suitable Fields: Petrochemicals, hydraulics; filtration of plastic and rubber particles; indoor decoration, protection, etc.
Mesh Edge Processing: Flash edge, Closed selvage.
REQUEST A QUOTE
Advantages of Filter Black Silk Cloth
Filter Black Silk Cloth Fabrication for Different Industries
Epoxy Coated Wire Mesh have diffrent applications for diffrent industries. Some of main applications are:
- Air filters as the supporting layers
- Hydraulic Filter Screen & supporting layer
- Insect & Reptiles Protection Screen
- Window & Door Screen Protection for costle area
- Privacy & Anti-Theft Screen
